Kia Forte: Front Seat Shield Outer Cover Replacement - Front Seat - Body (Interior and Exterior) - Kia Forte TD 2014-2018 Service ManualKia Forte: Front Seat Shield Outer Cover Replacement

Second generation YD (2014-2018) / Kia Forte TD 2014-2018 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Shield Outer Cover Replacement

(4Door, 5Door)

Put on gloves to protect your hands.

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Loosen the front seat shield outer cover mounting screws.
2.

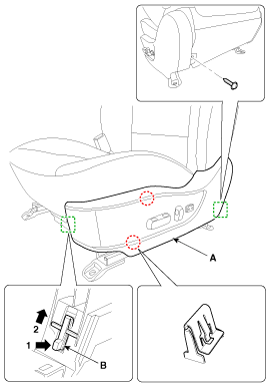

To remove the front seat shield outer cover (A), push the lock pin (B) in the direction of the arrow.

3.
Disconnect the connector (A).

4.
Install in the reverse order of removal.

Make sure the connector is plugged in properly.
Replace any damaged clips.
(2Door)

Put on gloves to protect your hands.

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the height adjust lever cap (A).
2.
After loosening the mounting screws, then remove the height adjust lever (B).

3.
To, disengage the lock pin, pull the recliner lever (A) after pushing lock pin hole (B) with the pointed instrument (C).

Be careful not to damage the lock pin.

4.
Loosen the front seat shield outer cover mounting screws.
5.
To remove the front seat shield outer cover (A), push the lock pin (B) in the direction of the arrow.

6.
Disconnect the connector (A).

7.
Install in the reverse order of removal.

Make sure the connector is plugged in properly.
Replace any damaged clips.
Front Seat Shield Outer Cover Component Location
1. Front seat shield outer cover ...

Front Seat Shield Inner Cover Component Location
1. Front seat shield inner cover ...
