Kia Forte: Instrument Cluster Components - Indicators And Gauges - Body Electrical System - Kia Forte TD 2014-2018 Service ManualKia Forte: Instrument Cluster Components

Second generation YD (2014-2018) / Kia Forte TD 2014-2018 Service Manual / Body Electrical System / Indicators And Gauges / Instrument Cluster Components

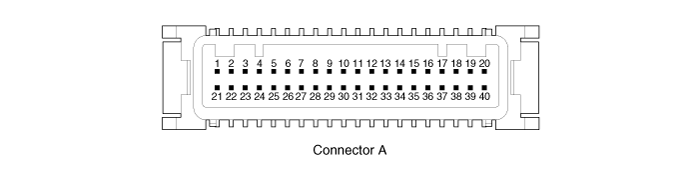

Connector Pin Information
No.
 Description
 No.
 Description
1
 Alternator L output
 21
 Battery (+)
2
 ISG type : LDC unit
General type : Battery(+)
 22
 Ignition (+)
3
 Air bag (+)
 23
 Illumination (+)
4
 Rheostat up switch
 24
 -
5
 Rheostat down switch
 25
 Signal ground 1
6
 Oil pressure
 26
 -
7
 Acitve ECO
 27
 MM CAN High (TFT only)
8
 Battery charge
 28
 MM CAN Low (TFT only)
9
 Low washer
 29
 -
10
 Immobilizer
 30
 C CAN High
11
 Steeering wheel input (DOT/TFT only)
 31
 C CAN Low
12
 Trip switch 1 (+)
 32
 -
13
 Trip (-)
 33
 Signal ground 2
14
 AT S output
 34
 Fuel (-)
15
 AT R output
 35
 Fuel (+)
16
 AT D output
 36
 5V output (FFV sender)
17
 AT N output
 37
 Trip switch 2 (+)
18
 AT P output
 38
 Speed input (M/T)
19
 Detent output
 39
 Ice warning input
20
 4P output
 40
 Illumination (-) output

Component Location
1. Instrument cluster assembly 2. Seat belt switch 3. Vehicle speed sensor 4. Engine coolant temperature sender 5. Oil pressure switch 6. Brake fluid level warning switch ...

Instrument Cluster Description
Cluster Variant Coding As we have more options (ESC, TPMS, etc.) in the car, the dashboard now have more information to display depending on the chosen options. For this reason, we need ...
