Kia Forte: Rear Door Window Glass Replacement - Rear Door - Body (Interior and Exterior) - Kia Forte TD 2014-2018 Service ManualKia Forte: Rear Door Window Glass Replacement

Second generation YD (2014-2018) / Kia Forte TD 2014-2018 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Window Glass Replacement

(4Door, 5Door)
1.
Pull down rear door window glass by pressing the power window glass switch.
2.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
3.
Remove the rear door belt inside weatherstrip (A).
4.

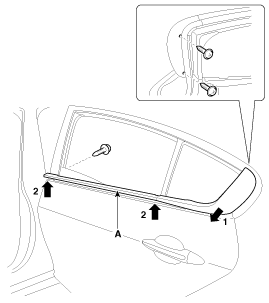

After loosening the mounting screws, then remove the rear door belt outside weatherstrip (A).

•
Remove the back of the rear door belt outside weatherstrip like the picture below.

5.
Remove the rear door rear seal (A).
6.
Loosen the rear door channel (A) mounting screw and bolt.
Tightening torque :
3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)

7.
Slightly push the rear door channel (A) like the direction of the arrow in the picture below.

8.
Remove the rear door window glass mounting hole plug.

•
Be careful not to drop the glass and/or scratch the glass surface.

A.
Use the door switch to align the mounting hole/bolt with the hole in the door.
B.
If unable to operate the window motor, remove the motor and align the hole by hand.
9.
Carefully adjust the rear door window glass (A) until you can see the screw, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot.
Tightening torque :
6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

10.
Install in the reverse order of removal.

•
Roll the glass up and down to see if it moves freely without binding.
•
Adjust glass position as needed.
•
Make sure the door lock and opens properly.
•
Replace any damaged clips.
Rear Door Window Glass Component Location
(4Door, 5Door) 1. Rear door window glass ...

Rear Door Module Component Location
(4Door, 5Door) 1. Rear door module ...
