Kia Forte: Audio Remote Control Circuit Diagram - Audio - Body Electrical System - Kia Forte TD 2014-2018 Service ManualKia Forte: Audio Remote Control Circuit Diagram

Second generation YD (2014-2018) / Kia Forte TD 2014-2018 Service Manual / Body Electrical System / Audio / Audio Remote Control Circuit Diagram

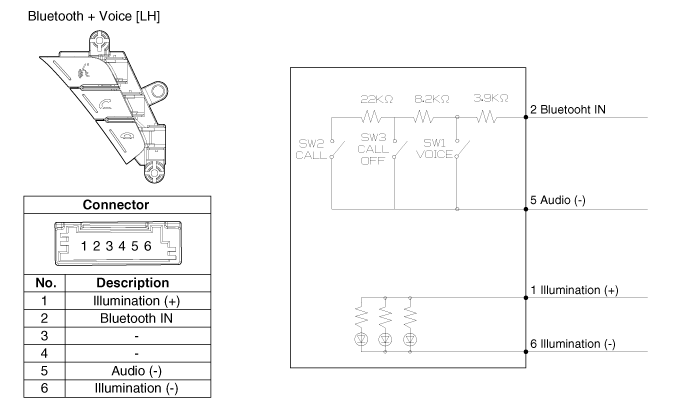

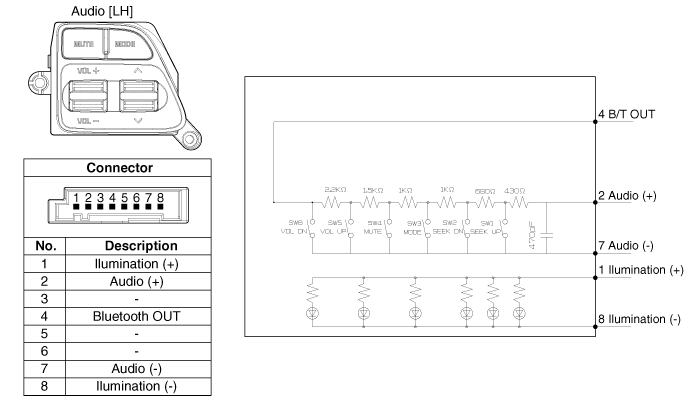

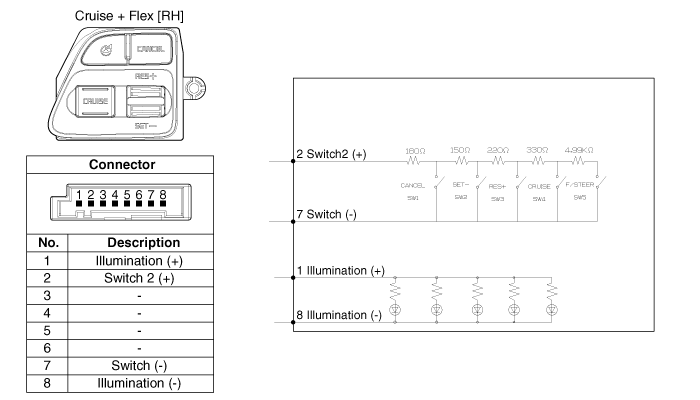

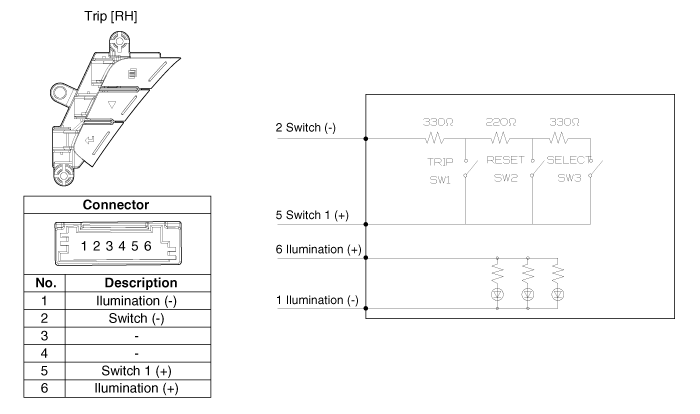

Audio Remote Control Component Location
1. Remote control switch(LH) 2. Remote control switch(RH) 3. Bluetooth hands free switch 4. Trip switch ...

Audio Remote Control Inspection
1. Check for resistance between terminals in each switch position. [Audio (LH)] Switch Connector terminal Resista ...
