Kia Forte: Fuse/relay panel description - Fuses - Maintenance - Kia Forte TD 2014-2018 Owners ManualKia Forte: Fuse/relay panel description

Second generation YD (2014-2018) / Kia Forte TD 2014-2018 Owners Manual / Maintenance / Fuses / Fuse/relay panel description

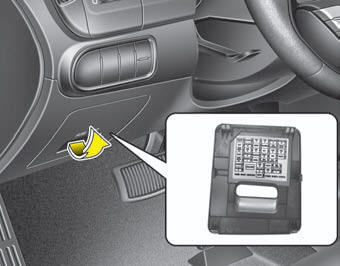

Inside the fuse/relay panel covers, you can find the fuse/relay label describing


Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

✽ NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

✽ NOTICE

The actual fuse/relay panel label may differ from equipped items.

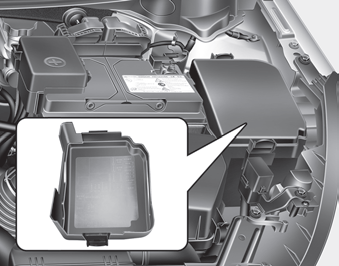

Engine compartment fuse panel


Engine compartment fuse panel

✽ NOTICE


✽ NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

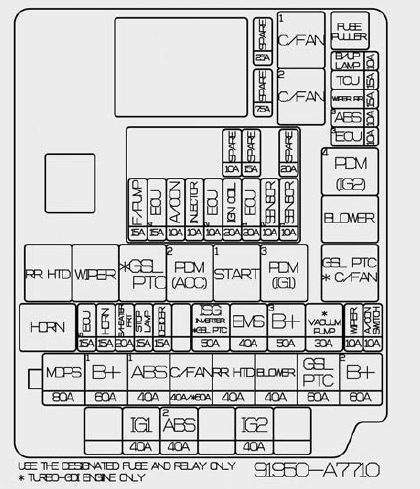

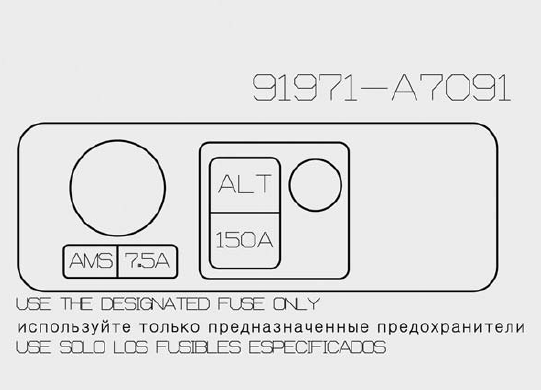

Engine room (Battery terminal cover)


Engine room (Battery terminal cover)

✽ NOTICE


✽ NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

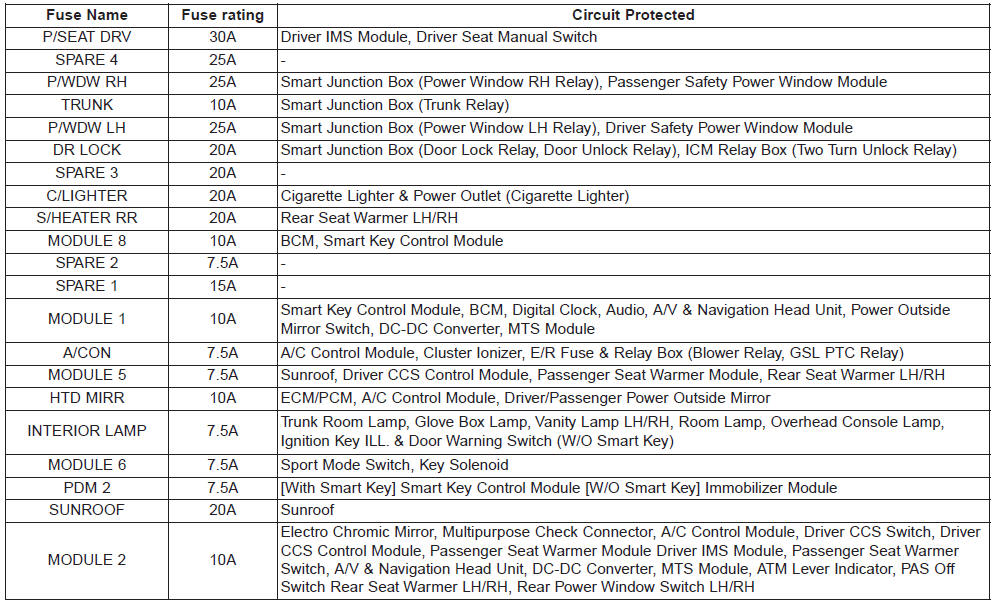

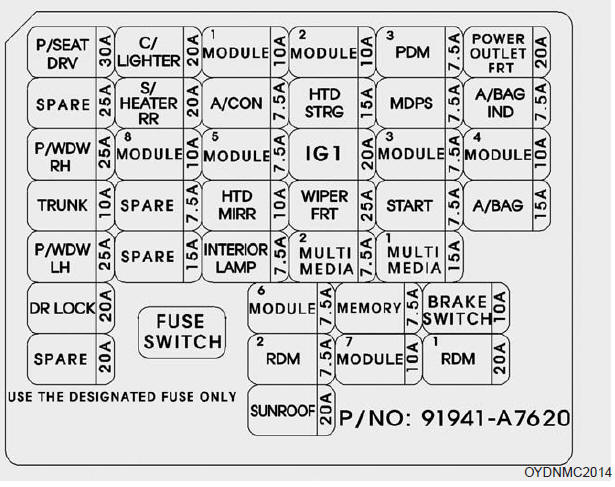

Instrument panel fuse panel


Instrument panel fuse panel

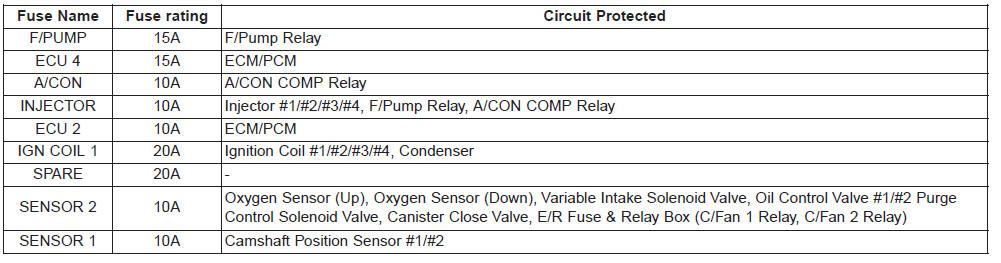

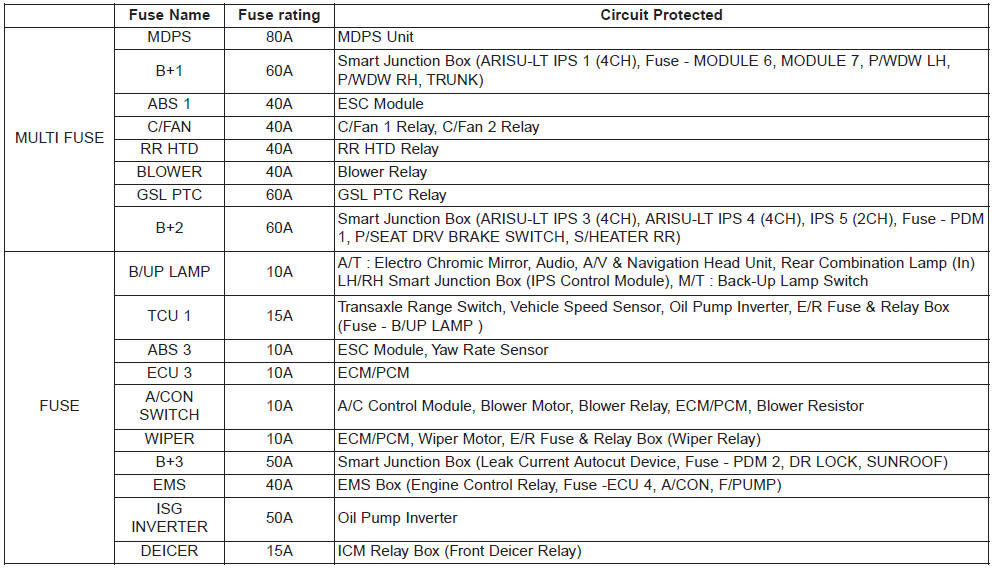

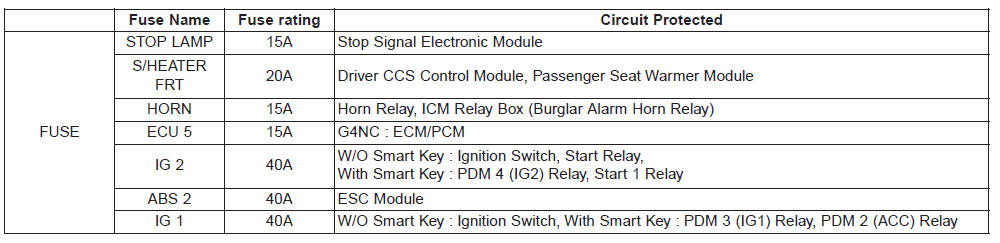

Engine compartment fuse panel


Engine compartment fuse panel


Engine compartment fuse panel (EMS BOX)


Engine compartment fuse panel (EMS BOX)

Light bulbs


Fuses
A vehicle's electrical system is protected from electrical overload damage by fuses. This vehicle has 2 fuse panels, one located in the driver's side panel bolster, others in the engine ...

Light bulbs
WARNING - Lights Prior to working on the light, firmly apply the parking brake, ensure that the ignition switch is turned to the УLOCKФposition and turn off the lights to avoid burning your fingers ...
