Kia Forte: Head Lamp Aiming Instructions
Second generation YD (2014-2018) / Kia Forte TD 2014-2018 Service Manual / Body Electrical System / Lighting System / Head Lamp Aiming Instructions
The head lamps should be aimed with the proper beam-setting equipment,
and in accordance with the equipment manufacturer's instructions.
If there are any regulations pertinent to the aiming of head lamps
in the area where the vehicle is to be used, adjust so as to meet those
requirements.
|
Alternately turn the adjusting gear to adjust the head lamp aiming. If
beam-setting equipment is not available, proceed as follows:
| 1. |
Inflate the tires to the specified pressure and remove any loads
from the vehicle except the driver, spare tire, and tools.
|
| 2. |
The vehicle should be placed on a flat floor.
|
| 3. |

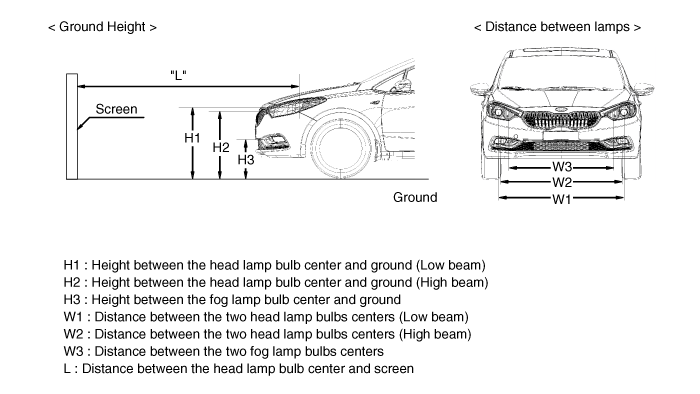

Draw vertical lines (Vertical lines passing through respective
head lamp centers) on the screen.
|
| 4. |
With the head lamp and battery in normal condition, aim the head
lamps so the brightest portion falls on the vertical lines.
A : Vertical(Low)
|
Front Fog Lamp Aiming
The front fog lamps should be aimed as the same manner of the head lamps
aiming.
With the front fog lamps and battery normal condition, aim the front fog
lamps by turning the adjusting screw (A) with a driver.
Head Lamp And Fog Lamp Aiming Point
| 1. |
Head Lamp (Low beam)
|
| 2. |
Turn the front fog lamp on without the driver aboard.
The cut-off line should be projected in the allowable range (shaded
region)
|
Head Lamps Installation
1.
Install the head lamp bulbs.
2.
Connect the connectors.
3.
Install the head lamp bolts (3EA).
...
Room Lamp Inspection
Room Lamp
1.
Check that the switch operates properly after disconnecting the
room lamp connector (A).
...
