Kia Forte: Component Location - Rear Glass Defogger - Body Electrical System - Kia Forte TD 2014-2019 Service ManualKia Forte: Component Location

Second generation YD (2014-2019) / Kia Forte TD 2014-2019 Service Manual / Body Electrical System / Rear Glass Defogger / Component Location

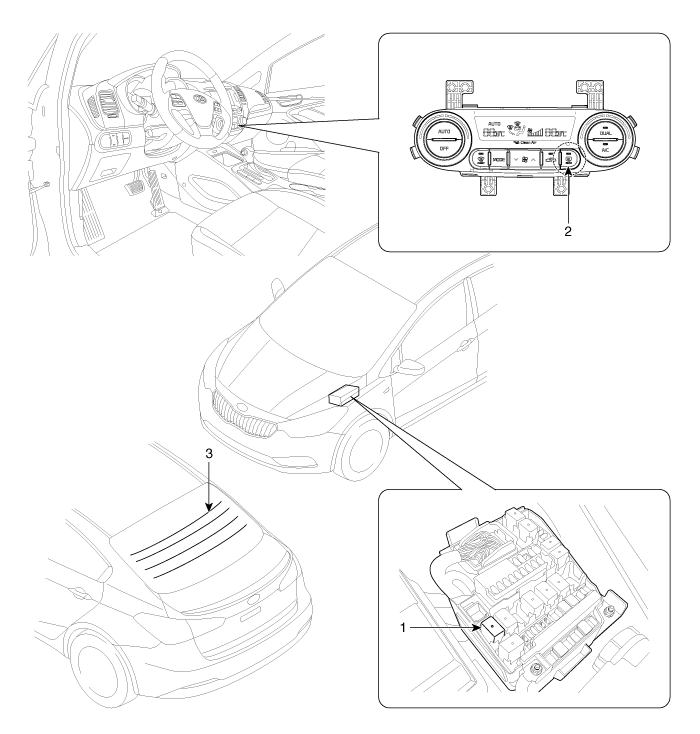

1. Rear glass defogger relay (Engine room relay box)
2. Rear glass defogger switch (A/C controller)
3. Rear glass defogger
