MDPS Circuit Diagram

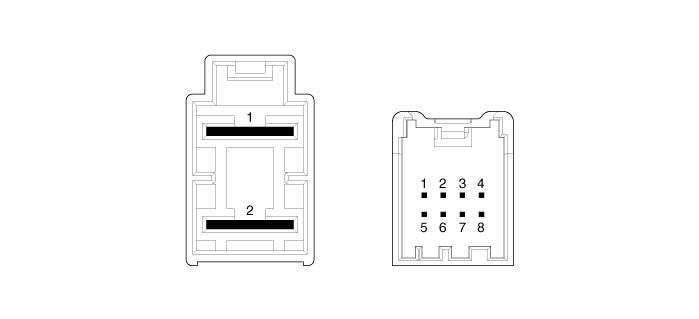

Harness Connector

Connector
Pin no
Pin name
Battery
1
Battery +
2
Battery -
Vehicle signal
1
Igntion
2
-
3
-
4
-
5
-
6
-
7
CAN_High
8
CAN_Low

Components
1. Steering column shaft 2. ECU 3. Motor 4. Steering gear box ...

Description
EPS (Electronic power steering, Column assist type) system uses an electric motor to assist the steering force and it is an engine operation independent steering system. EPS control modu ...
