Kia Forte: Front Hub / Knuckle Components - Front Axle Assembly - Driveshaft and axle - Kia Forte TD 2014-2018 Service ManualKia Forte: Front Hub / Knuckle Components

Second generation YD (2014-2018) / Kia Forte TD 2014-2018 Service Manual / Driveshaft and axle / Front Axle Assembly / Front Hub / Knuckle Components

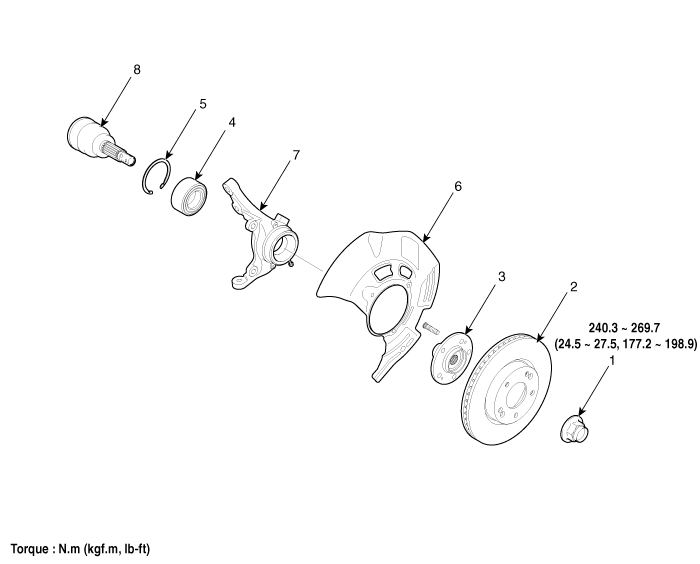

1. Drive shaft coking nut
2. Brake disc
3. Wheel hub assembly
4. Wheel bearing

5. Snap ring
6. Dust cover
7. Knuckle
8. Drive shaft
