Kia Forte: Components

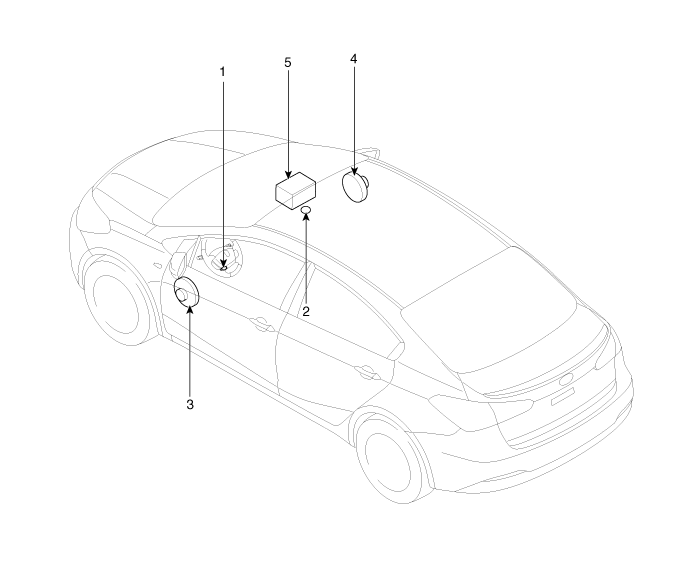

| 1. Hands free call switch 2. Mic 3. Front left speaker |
4. Front right speaker 5. Audio head unit (hands free control) |
| ※ There is no hands free jack. This system supports
Bluetooth(wireless system). |
General Features
•
This audio system supports Bluetooth® hands-free and stereo-headset
features.
-
HANDS-FREE feature: Making or receiving calls wirelessly.
...
