Kia Forte: Components Location - Restraint - Kia Forte TD 2014-2018 Service ManualKia Forte: Components Location

Second generation YD (2014-2018) / Kia Forte TD 2014-2018 Service Manual / Restraint / Components Location

Supplemental Restraint System Control Module (SRSCM)

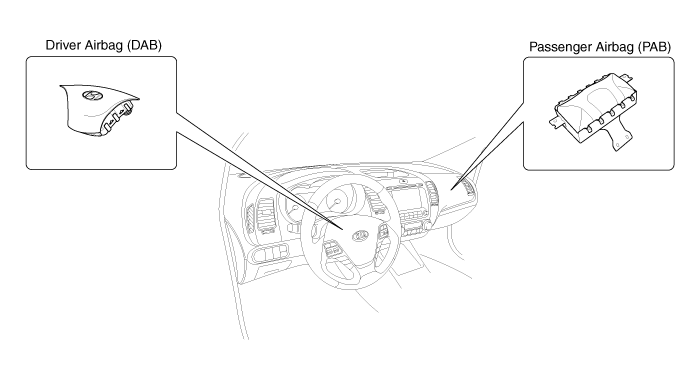

Driver Airbag (DAB) / Passenger Airbag (PAB)

Side Airbag (SAB)

Curtain Airbag (CAB)

Seat Belt Pretensioner (BPT) / Emergency Fastening Device (EFD)

Front Impact Sensor (FIS)

Side Impact Sensor (SIS)

Components
1. Driver Airbag (DAB) 2. Steering Wheel 3. Clock Spring 4. Seat Belt Pretensioner (BPT) 5. Pressure Side Impact Sensor (P-SIS) 6. Side Impact Sensor (SIS) 7. Side Airbag ...

Warning Lamp Activation
Warning Lamp Behavior after Ignition On As soon as the operating voltage is applied to the SRSCM ignition input, the SRSCM activates the warning lamp for a LED lamp check. T ...
