Kia Forte: Crankshaft Components
Second generation YD (2014-2018) / Kia Forte TD 2014-2018 Service Manual / Engine Mechanical System / Cylinder Block / Crankshaft Components

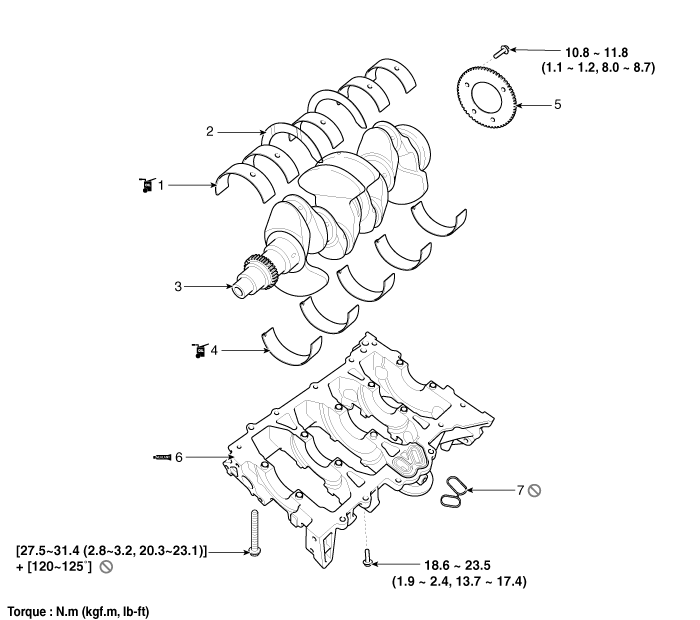

| 1. Crankshaft upper bearing 2. Crankshaft thrust bearing 3. Crankshaft 4. Crankshaft lower bearing |
5. Crankshaft position sensor (CKPS) wheel 6. Lower crankcase 7. Gasket |
Piston and Connecting Rod Reassembly
•
Thoroughly clean all parts to be assembled.
•
...
Crankshaft Disassembly
•
Use fender covers to avoid damaging painted surfaces.
...
