Kia Forte: Door Scuff Trim Replacement - Interior Trim - Body (Interior and Exterior) - Kia Forte TD 2014-2019 Service ManualKia Forte: Door Scuff Trim Replacement

Second generation YD (2014-2019) / Kia Forte TD 2014-2019 Service Manual / Body (Interior and Exterior) / Interior Trim / Door Scuff Trim Replacement

(4Door, 5Door)

Х
Put on gloves to protect your hands.

Х
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Х
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Х
Take care not to bend or scratch the trim and panels.
1.

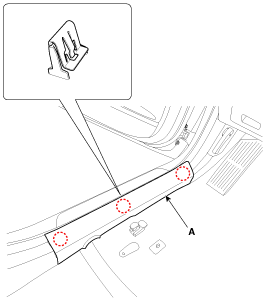

Using a screwdriver or remover, remove the front door scuff tirm (A).
[Front]

2.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
3.
After loosening the mounting screws, then remove the rear door scuff tirm (A).
[Rear]

4.
Install in the reverse order of removal.

Х
Replace any damaged clips.
(2Door)

Х
Put on gloves to protect your hands.

Х
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Х
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Х
Take care not to bend or scratch the trim and panels.
1.
Using a screwdriver or remover, remove the front door scuff tirm (A).
[Front]

2.
Install in the reverse order of removal.

Х
Replace any damaged clips.
