Kia Forte: Component Location
| [Engine Room] |
| 1. Receiver Drier 2. Condenser 3. Ambient Temperature Sensor 4. Compressor 5. Discharge Hose |
6. Suction & Liquid Tube Assembly 7. Service Port (High Pressure) 8. Service Port (Low Pressure) 9. A/C Pressure Transducer (APT) 10. Expansion Valve |

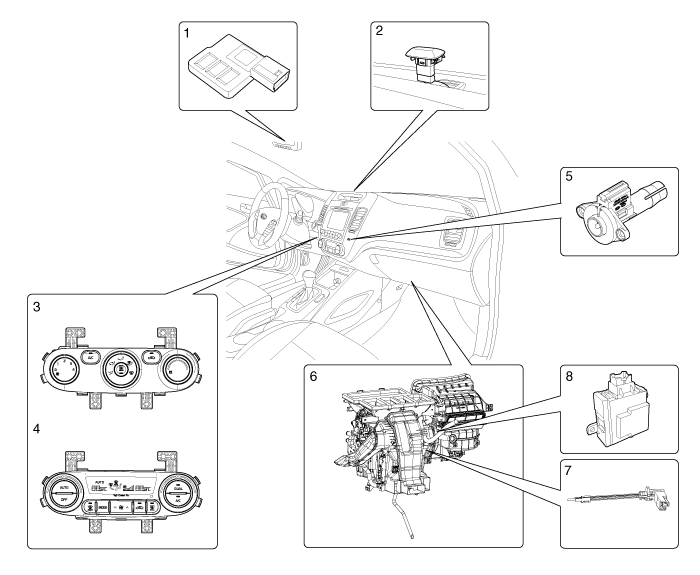

| [Interior] |
| 1. Auto Defogging Sensor 2. Photo Sensor 3. Heater & A/C Controller (Manaul) 4. Heater & A/C Controller (DATC) |
5. Incar Sensor 6. Heater & Blower Unit 7. Evaporator Temperature Sensor 8. Cluster Ionizer |
Refrigerant Recovery
Use only service equipment that is U.L-listed and is certified to meet
the requirements of SAE J2210 to remove HFC-134a(R-134a) from the air conditioning
system.
...
Compressor Oil Specification
1.
The R-134a system requires synthetic compressor oil (PAG) whereas
the R-12 system requires mineral compressor oil. The two oils must never
be mixed.
...
