Kia Forte: Relay Box (Engine Compartment) Components - Fuses And Relays - Body Electrical System - Kia Forte TD 2014-2019 Service ManualKia Forte: Relay Box (Engine Compartment) Components

Second generation YD (2014-2019) / Kia Forte TD 2014-2019 Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Engine Compartment) Components

Component Location

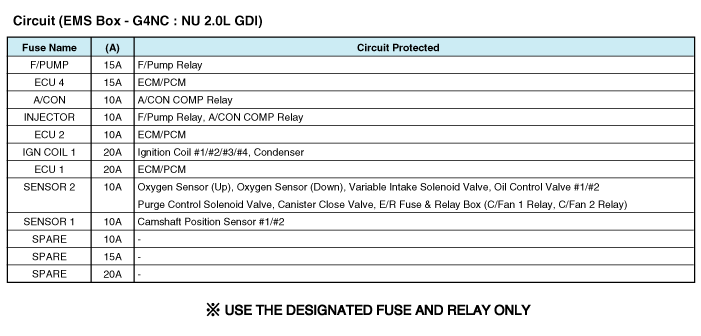

1. EMS box assembly (Engine control relay, Fuel pump relay, Air conditioner compressor relay) 2. C/Fan 1 relay 3. C/Fan 2 relay 4. SSB 4(IG2) relay 5. Blower relay ...

Relay Box (Engine Compartment) Inspection
Power Relay Test (Type A)    - Do not use pliers. - ...
