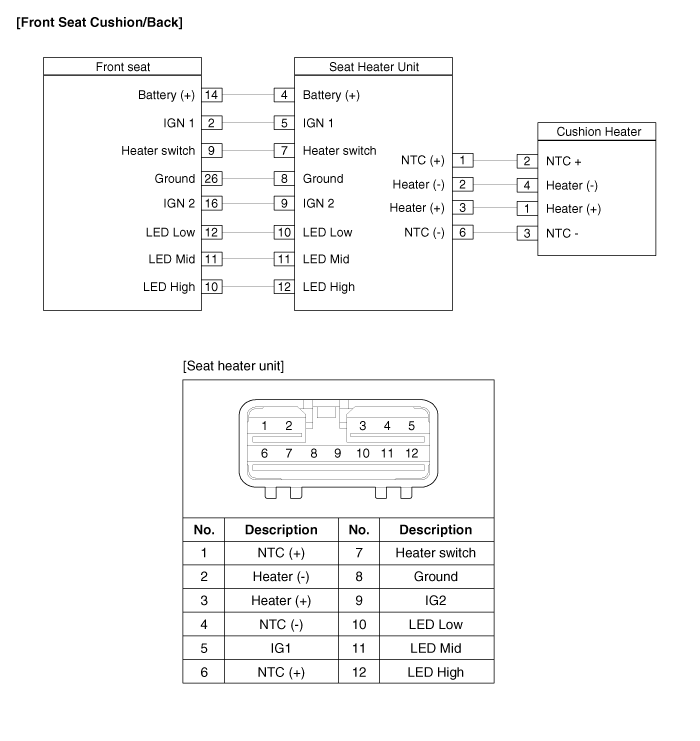

Kia Forte: Seat Heater (Non-Air Ventilation) Circuit Diagram

※ The cushion heater and back cushion are connected with wiring.

Seat Heater (Non-Air Ventilation) Component Location

...

Seat Heater Inspection

Front Seat 1. Check for continuity and measure the resistance between terminals. No. Description No. Descripti ...
