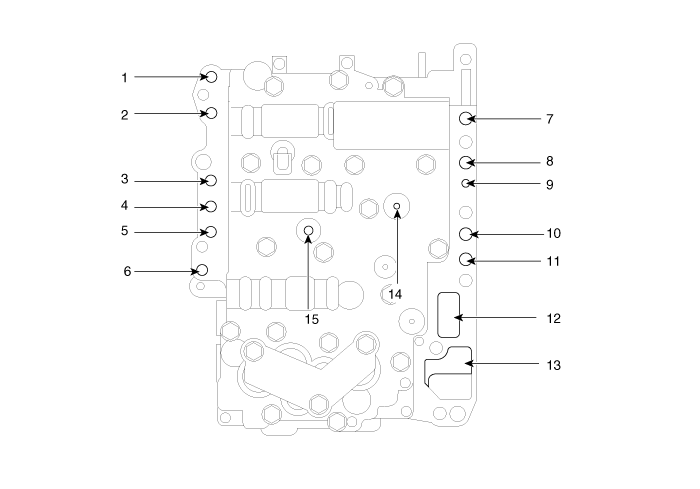

Kia Forte: Valve Body Components Location

| 1. Pressure Controle Valve(PCV) adjust screw 2. Solenoid valve 3. Oil temperature sensor |
4. Accumulator 5. Low & Reverse Brake(LR/B) pressure flow hole 6. Underdrive Brake(UD/B) pressure flow hole |

| 1. To cooler 2. From cooler 3. Lubrication(rear) 4. Overdrive pressure 5. Reducing pressure (red2) 6. Reducing pressure (red1) 7. Damper release pressure 8. Damper apply pressure |
9. Lubrication(front) 10. 35R Clutch (35R/C) pressure 11. 26 Brake (26/B) pressure 12. From oil pump 13. To oil pump 14. Underdrive pressure 15. Low & reverse pressure |
