✽ NOTICE

If you install an after market HID head lamp, your vehicle’s audio and electronic device may malfunction.

Glass antenna (if equipped)

When the radio power switch is turned on while the ignition switch is in either


When the radio power switch is turned on while the ignition switch is in either the “ON” or “ACC” position, your car will receive both AM and FM broadcast signals through the antenna in the rear window glass.

CAUTION

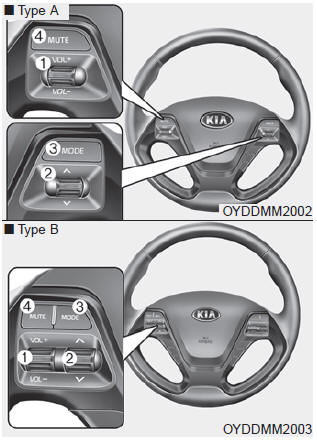

Steering wheel audio controls (if equipped)

The steering wheel may incorporate audio control buttons.


The steering wheel may incorporate audio control buttons.

WARNING

Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering wheel- mounted controls while driving.

CAUTION

Do not operate audio remote control buttons simultaneously.

VOLUME ( /
/ (1))
(1)

SEEK/PRESET (/
/ (2))
(2)

The SEEK/PRESET button has different functions based on the system mode. For the following functions the button should be pressed for 0.8 seconds or more.

RADIO mode

It will function as the AUTO SEEK select button.

CD/USB/ iPod mode

It will function as the FF/REW button.

If the SEEK/PRESET button is pressed for less than 0.8 seconds, it will work as follows in each mode.

RADIO mode

It will function as the PRESET STATION buttons.

CD/USB/ iPod mode

It will function as TRACK UP/DOWN button.

MODE (3)

Press the button to change audio source.

FM(1~2)➟AM➟SAT(1~3)➟CD➟USB AUX(iPod)➟FM...

In addition to mode change, Power on/off can be made by pressing this button when the ignition switch is on ACC or ON.

Power ON:

Press the button when the audio is off

Power OFF:

Press the button for more than 0.8 seconds when the audio is on.

MUTE (4, if equipped)

Detailed information for audio control buttons are described in the following pages in this chapter.

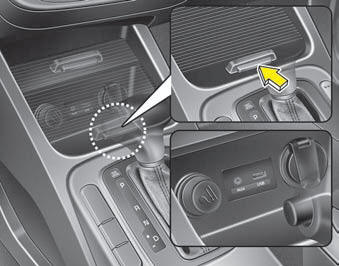

Aux, USB and iPod®* port

If your vehicle has an aux and/or USB(universal serial bus) port or iPod® port,


If your vehicle has an aux and/or USB(universal serial bus) port or iPod® port, you can use an aux port to connect audio devices and an USB port to plug in an USB and also an iPod® port to plug in an iPod®.

✽ NOTICE

When using a portable audio device connected to the power outlet, noise may occur during playback. If this happens, use the power source of the portable audio device.
